Lightweight Lithium Electric Forklift Battery High Power 15KWH 36V 430Ah

Product Categories
Shenzhen Herculesi Technology Co., Ltd.
Contact Now

Lightweight Lithium Electric Forklift Battery High Power 15KWH 36V 430Ah

Brand Name : HKANON

Model Number : HN-LFP 36V 430Ah

Certification : CE, UL, RoHS, MSDS, UN38.3

Place of Origin : Shenzhen, China

MOQ : 1Pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5,000Pcs/Month

Delivery Time : 10 Days

Packaging Details : 1PC/1 Wooden Box

Product name : Electric Forklift Lithium Battery Power 15KWH 36V 430Ah 16KWH 48V 344Ah

Cell inside : 12S5P- 3.2V 86Ah

Chemistry : LiFePO4

Application : Electric forklift, AGV, UTV, Electric Stacker Cars, Electric Pallet Trucks, Road Vehicles

Ingress protection : IP65

BMS : Included

Contact Now

Electric Forklift Lithium Battery Power 15KWH 36V 430Ah 16KWH 48V 344Ah

Advantages

  • Lighter weight , smaller size
  • High temperature performance
  • Extremely safe, no explosion, no fire under collision
  • Low self-discharge and good discharge performance at low temperature
  • Strong over-discharge resistance and charge retention
  • Strong charging acceptance and quick-charging capability
  • Excellent large current discharge performance especially in startup and climbing
  • Maintenance-free and no acid or water for maintenance in usage
  • Large capability and long life for all high power output applications
  • Environmentally friendly non-toxic,non-contaminating,no rare metal

Warning

  • Do not dis-assemble, dispose in the fire, heat or short circuit.
  • Do not insert batteries with the (B+) and (B-) reversed.
  • Do not mix fresh batteries with used batteries.
  • Do not submerge the battery in water.

SPECIFICATIONS

Battery Type LiFePO4/Lithium Iron Phosphate
Pack Structure Series and parallel connected
Rated Voltage 36V
Rated Capacity 430AH
Nominal Power 15KWh
Charge Cut-off Voltage Cell max. voltage 3.65
Discharge Cut-off Voltage Cell min. voltage 2.5V
Max. Continuous Charge Current 0.5C
Max. Continuous Discharge Current 1C
Charging Model CC / CV
Dimension Customized size
Communication CAN bus/RS485/RS232(Optional)
Warranty 15 Months
Application Forklift, Electric Car, AGV, UTV, Electric Stacker Cars, Electric Pallet Trucks, Road Vehicles
Charge Temperature 0℃~45℃
Operating Temperature -20℃~60℃
Storage Temperature Room Temperautre(Normally 25℃)

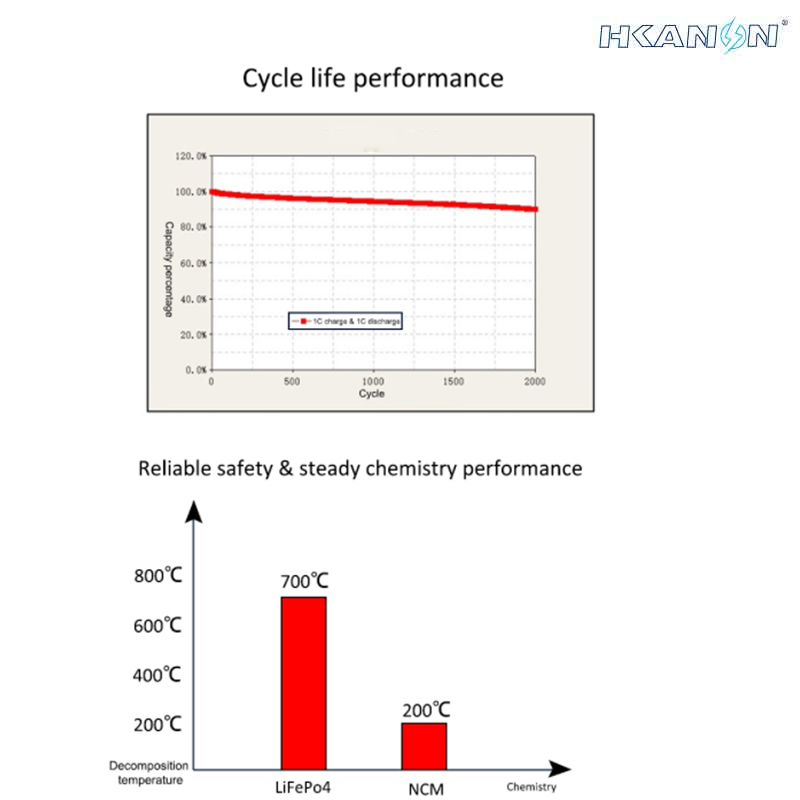

Cycle Life More than 2500 times (100% DOD)
Built-in (16S 150A BMS) Over-charging & charging protection.
Temperature control function.
Short circuit protection.
Balances the cells and ensures long cell life.

Lightweight Lithium Electric Forklift Battery High Power 15KWH 36V 430Ah

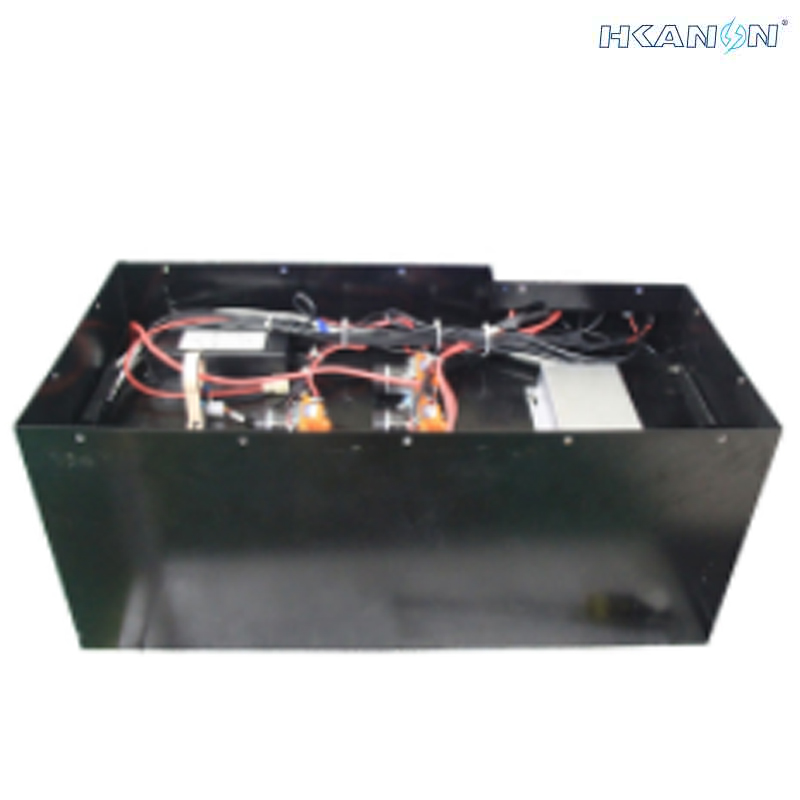

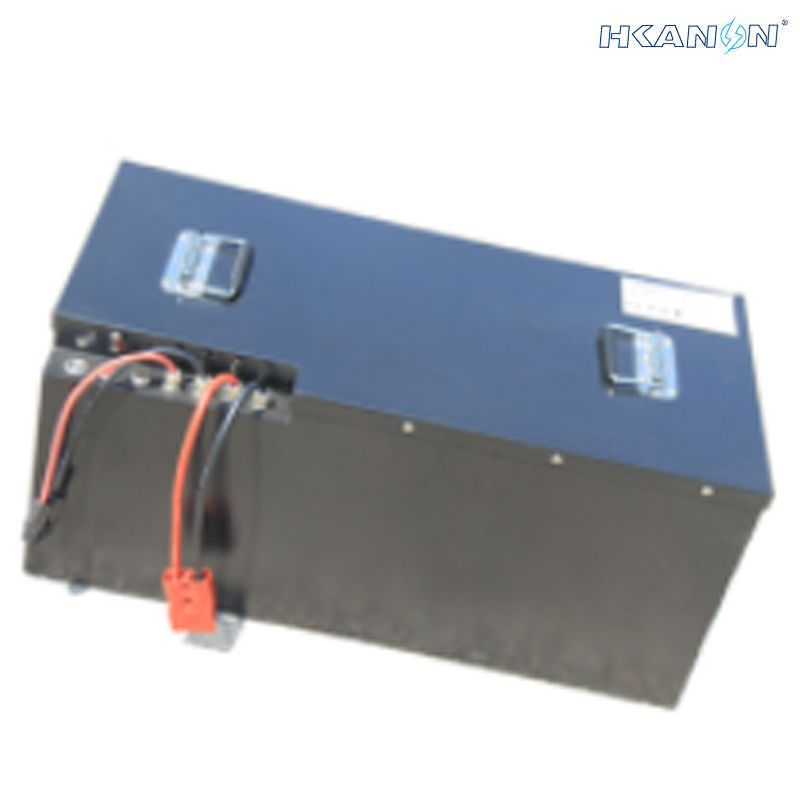

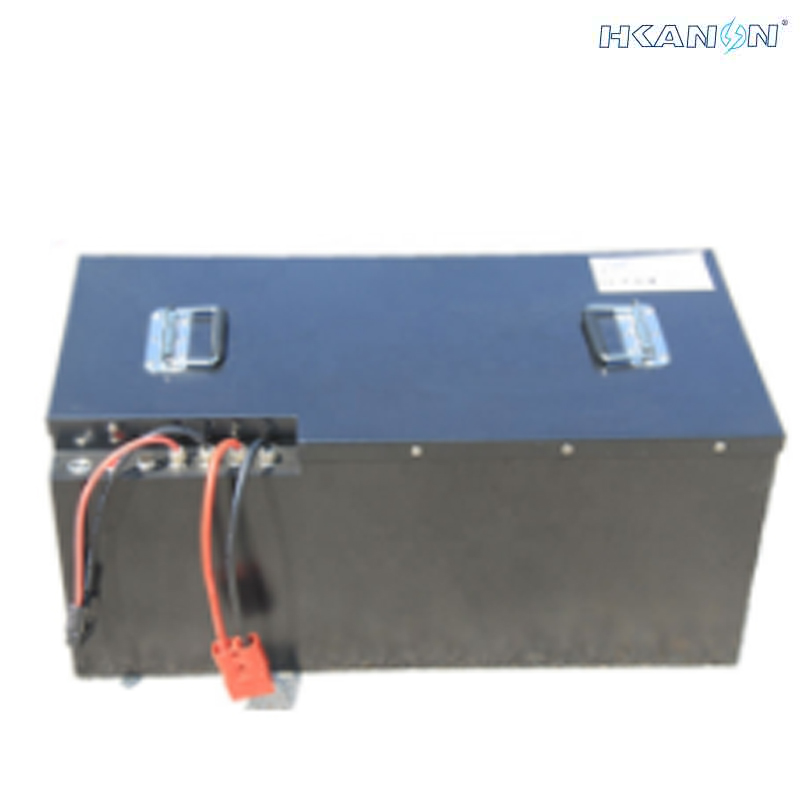

INTERIOR AND EXTERIOR GALLERY

Lightweight Lithium Electric Forklift Battery High Power 15KWH 36V 430Ah

Lightweight Lithium Electric Forklift Battery High Power 15KWH 36V 430Ah

Lightweight Lithium Electric Forklift Battery High Power 15KWH 36V 430Ah

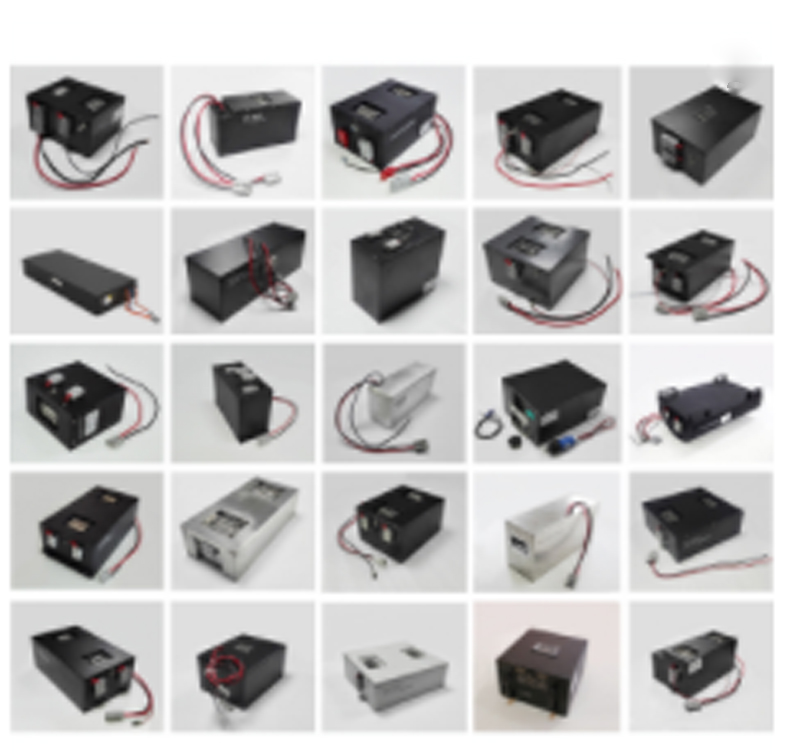

OTHER RELATED PRODUCT

Battery type Power(kwh) Size(mm) Weight(kg) Voltage Capacity
12V 270Ah 3.46 430*380*200 36 12.8 270
12V 350Ah 4.48 530*380*200 45 12.8 350
12V 450Ah 5.76 630*380*200 52 12.8 450
12V 280Ah 3.58 380*380*290 36 12.8 280
12V 380Ah 4.86 380*380*290 44 12.8 380
12V 480Ah 6.14 480*380*290 52 12.8 480
12V 550Ah 7.04 480*380*290 61 12.8 550
12V 650Ah 8.32 580*380*290 69 12.8 650
12V 750Ah 9.6 630*380*290 78 12.8 750
12V 850Ah 10.88 730*380*290 86 12.8 850
12A 950Ah 12.16 730*380*290 94 12.8 950
24V 190Ah 4.86 380*380*290 44 25.6 190
24V 280Ah 7.17 480*380*290 61 25.6 280
24V 380Ah 9.73 630*380*290 78 25.6 380
24V 470Ah 12.03 730*380*290 94 25.6 470
48V 95Ah 4.86 380*380*290 44 51.2 95
48V 185Ah 9.47 630*380*290 78 51.2 185
60V 95Ah 6.08 480*380*290 52 64 95
60V 185Ah 11.84 730*380*290 94 64 185
72V 95Ah 7.3 480*380*290 61 76.8 95

Lightweight Lithium Electric Forklift Battery High Power 15KWH 36V 430Ah
